Closed loop rotary dryer

Turnkey Projects Installations

Impressive advantages

  • Reduces operation and transport costs drastically
  • Produces Class A Biosolids in a safe and enclosed environment
  • Operates with minimal supervision due to its high level of automation
  • Provides stable and reliable operation adaptable to frequent product variations
  • Generates no noise or odor disturbances in the neighborhood
  • Operates on various alternative heat sources, including biogas, biomass and thermal fluids
  • Requires minimal space

Closed Loop Rotaty Dryer


Reliable equipment – Useful and ecological end product

  • Dries municipal and industrial sludge and produces pellets reusable as fertilizers, combustibles or inert aggregate material
  • Huge reduction of inconveniences to the neighborhood due to transport noise and dust
  • Economical and ecological replacement option to landfills
  • Net GHG reduction when producing fertilizing biosolids

Superior results

“The La Pinière wastewater treatment plant in Laval, dewaters and dries, on an average day, around 30 metric tons of municipal sludge (dry basis) from an average solids content of about 28% at the drying system inlet to a solids content of more than 92% at the outlet. The biosolids produced in this process are certified as BNQ* Grade in the Province of Quebec. A part of these biosolids is distributed as fertilizers and a larger part is currently used as an efficient combustible and process addition in a cement plant in the region. This drying system was rated by Berlie Technologies Inc. for a nominal evaporative capacity of 5 metric tons per hour and processes sludge for an estimated population of 280,000 people.” – Citation from the management

* BNQ Grade is an equivalent, in the Province of Quebec, to the United States EPA-503 Process to Further Reduce Pathogens grade known as Class A Biosolids

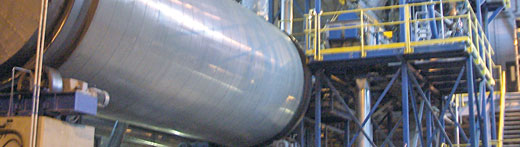

Closed Loop Rotaty Dryer - Superior Results

Closed loop rotary dryer

Series 1.0, 2.0, 3.0, 4.0, 5.0 & 6.0

Worldwide references

Berlie Technologies Inc. contracted and delivered, as turnkey projects, 11 biosolids drying and pelletizing plants in North America, Europe and Middle East.

There are 48 references of plants operating with this technology around the world.

Advanced technology

In our Patented Closed-Loop Design, oxygen is replaced by recycled steam in the dryer drum, which eliminates process risks and improves drying efficiency.

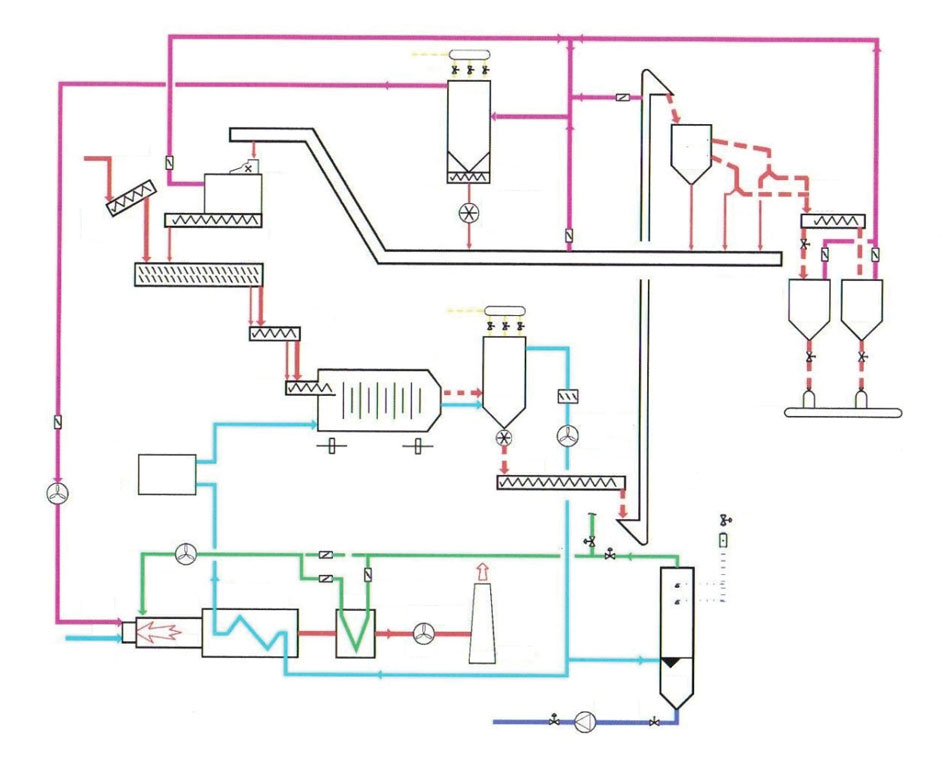

System configuration

Closed Loop Rotary Dryer - System Configuration

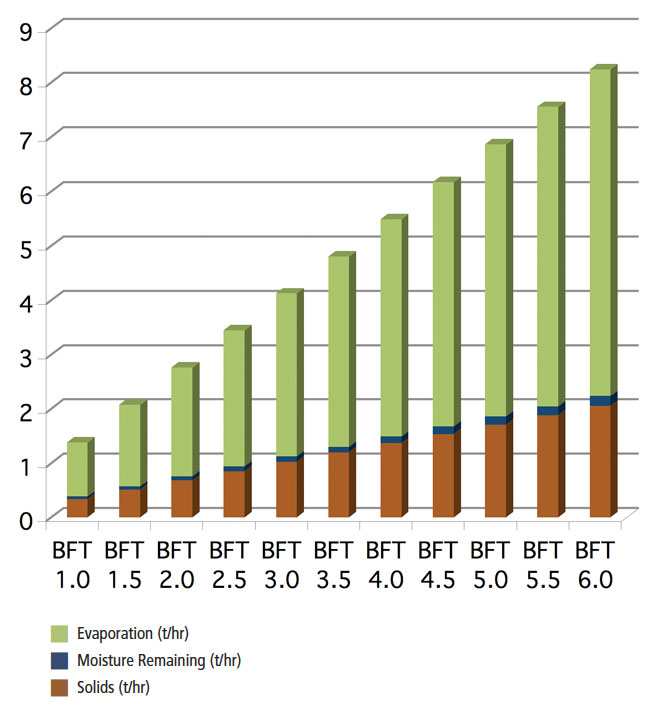

Performance chart

Closed Loop Rotary Dryer - Performance Chart

Energy savings and recovery

When processing dewatered primary sludge, this drying system can be operated without the purchase of fossil fuels if its end product is recycled on site as an efficient heat source.

When processing dewatered digested sludge from anaerobic digestion, this drying system can be operated without the purchase of fossil fuels if the digestion biogas is recycled as an efficient heat source.

Download the PDF sheetBerlie-Falco - téléchargez la fiche Biométhanisation

Swiss Combi Drum Drying

3-minute video

Groupe Berlie-Falco is an exclusive distributor of Swiss Combi SC Technology GmbH (SCT).

Click here for more information on Swiss Combi drying systems.



Groupe Berlie-Falco


Groupe Berlie-Falco offers turnkey solutions to optimize your production processes and systems. Our services incorporate the design, manufacturing, installation and commissioning of processes and specialized superior alloys equipment.

Groupe Berlie-Falco has complete expertise in biosolids and organic residuals treatment, water treatment, customized manufacturing processes and specialized technical services.
